How To Install And Run Windows 10 From A USB Drive

Did you Already know that a whole duplicate of Domestic Windows may be Established and run from a USB Drive? Microsoft brought “home windows to move” with home windows 8 corporation and has persevered helping the Characteristic in Windows 10, which can be stored on a pen energy for your pocket as a portable walking system.

This option is meant as a reachable manner for Employees to carry their enterprise environments with them, however having your very own Duplicate of home Windows on a thumb power may be handy for backup capabilities, too, or in case you frequently use Public machines that lack your Alternatives/applications or that have a constrained OS.

For a long term this Modified right into a neat factor you can do with many Linux distros (we plan to cowl Linux live on a separate article fast), but barring riding pressure complications and hardware obstacles, a windows to move stress ought to boot from “Most” Computer Structures.

Booting a Windows 10 “to Head” pressure on a modern system that shipped with home windows 10 is likely to paintings quality, and because overall performance if often of the essence, a USB 3.0 port is constantly proper. Older structures that initially offered with vista or xp may match, too, however will have decreased processing energy and slower USB ports, that means they won’t meet the minimal hardware necessities,listed below:

The Ability to Boot from a USB Drive
USB 2.0 Ports or Better
A 1GHz+ Processor
2GB of RAM, and…
DirectX 9 with WDDM 1.2 or Greater

Microsoft’s to go Documents be aware that a Technique called “Respecialize” identifies and loads drivers for a specific gadget all through the primary boot-up, together with disabling drivers that are not required. This profile is remembered and Automatically selected on next boot-ups. “In general this option is dependable and efficient whilst roaming between desktops of widely various hardware configurations,” The Organization says, and that is a “Normally Honest” Announcement Based on our observations from trying out.

On the top side of performance, running home windows 10 to head from a 32gb USB 3.1 Flash Drive become pretty usable for popular computing/simple productivity on an vintage laptop and a present day laptop. However, we also skilled Numerous Headaches while growing and booting special variations of home windows to head…

Hardware And Software Configurations Tested

Before we get to creating a Windows To Go drive, here’s an overview of the testing that was performed using a variety of hardware and software combinations as well as some recommendations and considerations about configuring a portable Windows drive.

Systems Used For Testing

-: An old Core i5 Lynnfield-based enthusiast desktop PC with USB 2.1 ports
-: A new Dell XP3 13 9370 laptop with USB-C ports & USB 3.1 adapter

As a side note, the desktop also has a USB 3.1 PCIe adapter card, but the motherboard’s BIOS can’t see or boot from drives attached to this device. This is typical for USB expansion cards and worth mentioning in the event that you attempt to boot from one. Here is more information on how to boot from a USB drive if the subject is unfamiliar to you.

USB Drives Tested

-: 16GB Patriot Xporter XT USB 2.0 drive (up to 30MB/s reads)
-: 32GB Samsung Bar Plus USB 3.1 ($9 drive with 200MB/s reads, 300MB/s on 128GB+ models)
-: 128GB Corsair Flash Voyager GTX USB 3.1 ($47 drive with 440MB/s reads & writes)

None of these are officially “certified” for Windows To Go. Besides being fast enough to run an operating system, certified USB drives are designed to appear as fixed instead of removable devices when plugged into Windows. Both types of drives can technically be used for Windows To Go, but only fixed ones will work with the creation tool built into Windows 10 Pro and Enterprise.

We’ll elaborate on this later, but note that despite not being an official Windows To Go drive, the Corsair Flash Voyager GTX does appear to Windows as a fixed drive, it certainly meets the speed requirements, and is considerably cheaper than ~$200 “certified” options such as the Kingston Data Traveler Workspace, Kanguru Mobile Workspace and Super Talent Express RC4.

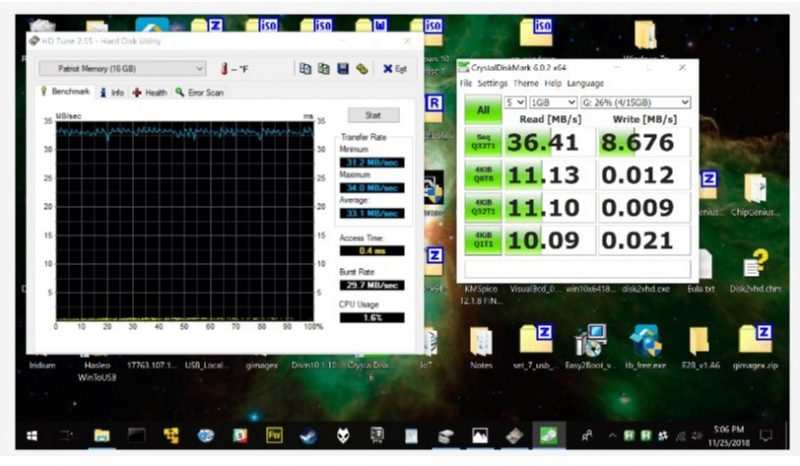

The ancient Patriot drive was included out of curiosity and its performance was as poor as you’d expect. Running Windows 10 on the 16GB USB 2.0 drive wasn’t what we’d deem usable and no greater success was had with Windows 7 or 8. Sometimes the initial setup process for Windows 10 would BSOD or fail some other way, and when the process did complete, the performance was slow to say the least, taking upwards of 30 seconds to open a menu for instance — if it would open at all. This configuration might only be useful for a recovery environment if you had no other option, though a lightweight Linux distro might make more sense on such a slow drive.

Conversely, the faster 200MB/s reads on Samsung’s drive proved to be very usable for general computing/basic productivity on a Windows 10 To Go drive, excluding the occasional spot of lag. We purchased this drive at the recommendation of a reader. Again, this model technically isn’t certified for Windows To Go and has relatively slow ~30MB/s write performance, which might matter depending on your use case. For reference, the write speed on a conventional hard drive is around 70MB/s.

Considering the fact that Samsung’s drive only costs about $10, it’s a great budget solution if you want to create a Windows To Go drive for basic use, although be aware that you’ll have to use third party tools instead of the one built into Windows 10 — we cover both in this article.

From what we’ve seen, USB drives that are certified for WTG tend to have read performance starting around the same speed as Samsung’s drive along with equally fast write speeds (~200MB/s). However, as mentioned before, this level of performance is available for considerably less money on “non-certified” USB drives, which can still be used for Windows To Go via third party tools. Microsoft’s official utility has other limitations as well and we imagine most of you will wind up using third-party tools.

Here are some additional non-certified drives that we recommend based on their price and advertised speed (the first two are removable and not fixed, the third should be fixed):

-: $29 64GB Kingston DataTraveler Elite G2 – up to 180MB/s reads and 70MB/s writes
-: $52 128GB SanDisk Extreme Pro – up to 420MB/s reads and 380MB/s writes
-: $198 1TB Samsung T5 Portable SSD – advertises up to 540MB/s reads and writes

Compared to the Samsung drive already discussed, the Kingston unit trades a few MB/s on reads for a few MB/s on writes, which should be better balanced performance-wise, at least on paper anyway.

Like the Flash Voyager GTX we tested, the SanDisk Extreme Pro should eliminate any questions or concerns about the capacity and speed of your Windows To Go drive. These models are around the same cost per gig (prices change a lot) but again, the Corsair drive appears to Windows as fixed and not removable, which is ideal for a Windows To Go drive.

The best value WTG-certified drive we found was the 64GB Kingston DataTraveler Micro Duo USB 3 Type-C (not USB Type-A) for $21, though this drive’s 100MB/s reads and 15MB/s writes are slower than the non-certified Kingston drive listed above for $29.

Lastly, if you were thinking about spending $200 on a faster certified Windows To Go drive, the Samsung T5 Portable SSD has 1TB of storage for the same price instead of only 64-128GB, is only a little larger than a thumbdrive, touts read/write rates of up to 540MB/s and should appear to Windows as a fixed device.

Windows Versions Tested As Portable

Windows 10 Pro x32 and x64 (around 5GB vs almost 8GB — more differences later)
Windows 10 Enterprise (required for the Windows To Go tool on Pro and Enterprise)
Windows 7 and 8.1 x32 (not recommended unless you know they work on the host)

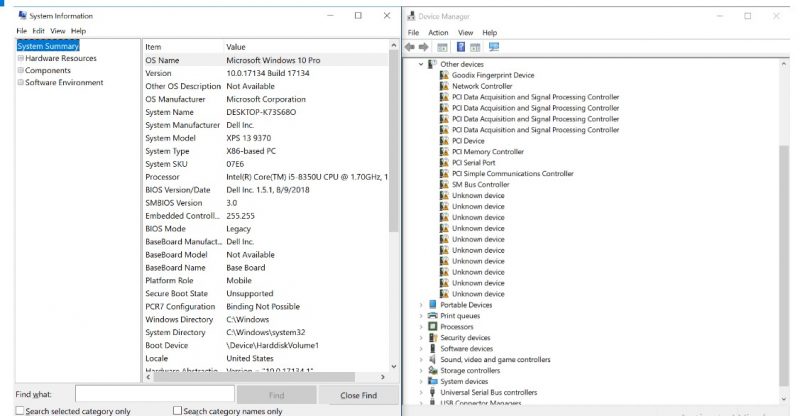

Although the 32-bit version of Windows 10 (build 1803) occupied around 3GB less than the 64-bit version, 64-bit managed to load Wi-Fi and touchpad drivers for our XPS 13 while 32-bit didn’t. If we had to guess, you are more likely to encounter 64-bit-capable machines than 32-bit-exclusive machines at this point. There may be more 32-bit systems in existence overall, but most of them are also outdated.

We don’t suggest using Windows 7 or Windows 8 To Go unless you’re sure they’ll boot on the systems you’ll be using. Both generations BSOD’d during the initial setup on the XPS 13 9370 and even failed to load on our enthusiast PC from that era. Third-party Windows To Go creation tools also tended to fail more frequently when using Windows 7 and 8 images, which are less supported in general.

Windows 10 64-bit should have the best driver compatibility on the machines that you are most likely to use, especially if they are on the newer side.

Running Windows 10 64-bit from the ~$10 Samsung drive plugged into a USB 3.1 port was particularly usable. Booting the same configuration from USB 2.0 often saw a second or two of unexpected lag when opening menus or applications — performance that we’d describe as “usable enough” if necessary for creating documents, browsing the web and so on.

Meanwhile, running Windows 10 on the Corsair Voyager was Essentially Indistinguishable from using Windows on any other SSD thanks to the drive’s advertised 440MB/s read & write performance.

Running Windows 10 From a USB Drive

First, sign into your modern windows 10 computer to create a windows 10 iSO Document with a view to be used to install home windows 10 onto the USB pressure.

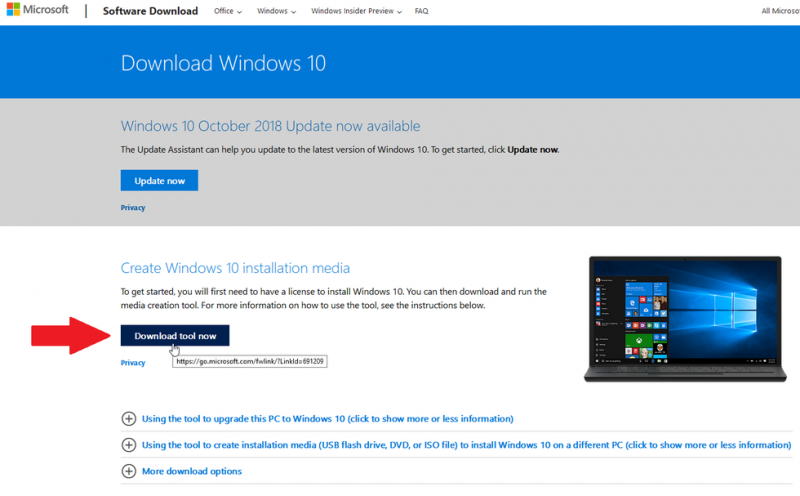

To do that, browse to the Download windows 10 internet site. This web page gives the brand new version of windows 10, which at this factor is the windows 10 october 2018 update, or windows 10 model 1809. Click the down load device now button. Then double-click on the downloaded Mediacreationtool.exe record to install the tool.

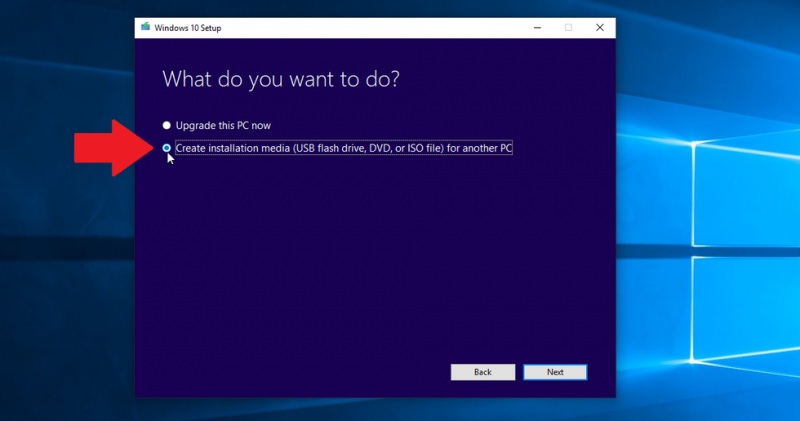

At the first screen for “Applicable notices and license terms,” click the Access button. Then click the option to “Create installation media for another PC” and click Next. At the “Select language, Architecture, and edition” screen, confirm that all of the options are correct and then click Next.

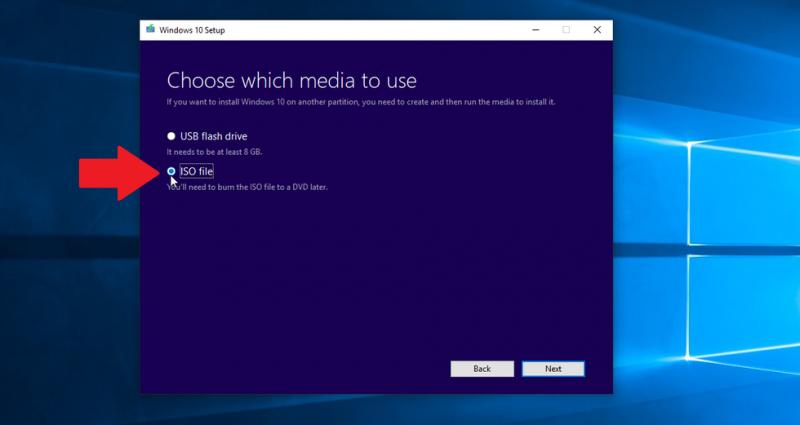

You will then need to choose what media you want to use. Given the option between a USB flash drive and an ISO file, click ISO file. Then click Next.

Choose a location on your hard drive to store the Windows.iso file. Click Save. Windows 10 generates the necessary ISO file. When the process is done, click Finish.

Running WinToUSB (With Caveats)

Next, it’s time to enlist the aid of WinToUSB. This program is effective and user friendly, but it suffers from one major drawback.

The free version does not support the current flavor of Windows 10—specifically the Windows 10 October 2018 Update, or Windows 10 version 1809. And Microsoft no longer offers older ISO files of Windows 10 at its download site. If you want to make a USB copy of Windows 10 version 1809 using WinToUSB, you’ll have to shell out $29.95 for the Professional version.

However, there is a Trick that will let you download an ISO file of the Windows 10 April 2018 Update, or Windows 10 version 1803, which you can use with the free version of WinToUSB. (Kudos to technology writer Mauro Huculak for revealing this option in an article at Pureinfotech.com.) Here’s how it works.

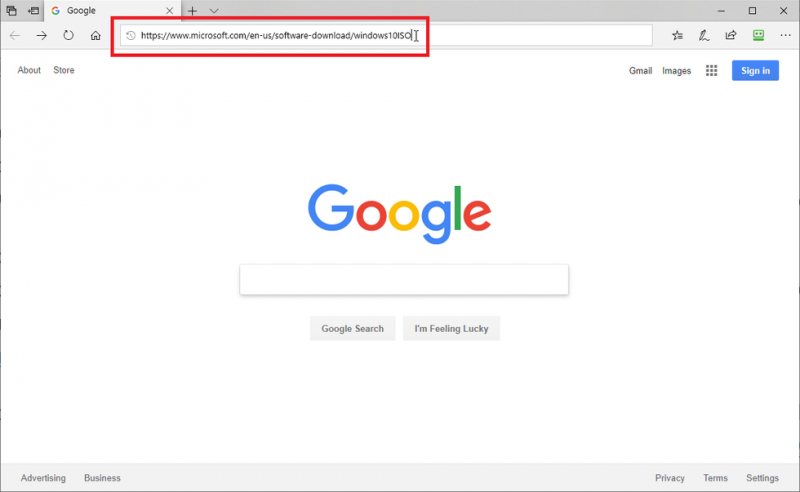

Open Microsoft Edge on your current Windows 10 computer. Copy and paste the following URL in the address bar: https://www.microsoft.com/en-us/software-download/windows10ISO.

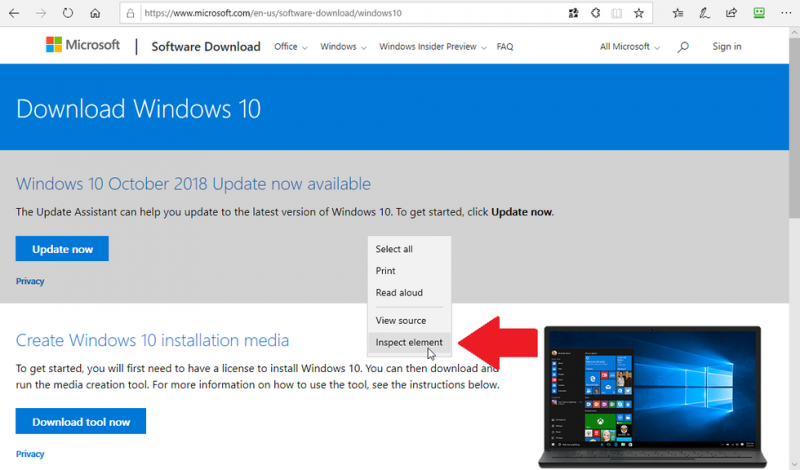

Yes, that takes you to Microsoft’s Download Windows 10 website. But wait, there’s more. Right-click on the page and select “Inspect element” to open the page’s code.

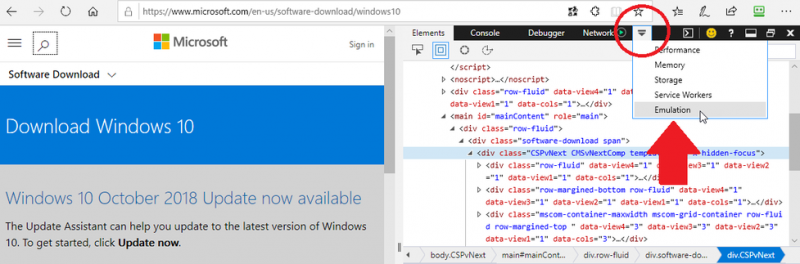

In the right pane, click the down arrow on the top menu bar and select the option for Emulation.

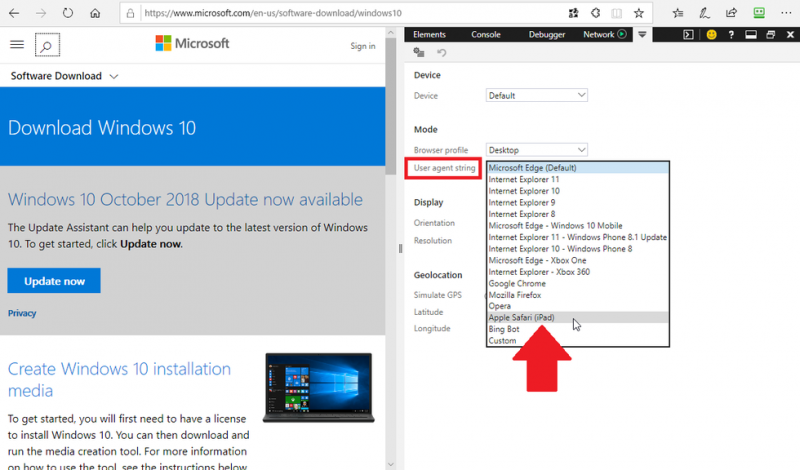

In the Mode section, open the drop-down menu for User agent string and change the entry to Apple Safari (iPad).

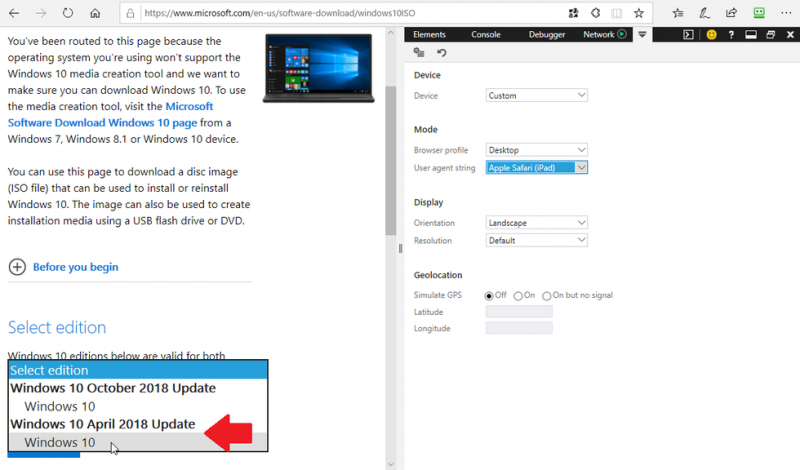

The page in the left pane should automatically refresh. If not, refresh it manually. Click the drop-down menu for Select edition and select the option for the Windows 10 April 2018 Update. Click Confirm.

At the next screen, choose your language, then click Confirm. On the Downloads page, choose the 32-bit or 64-bit version of the Windows 10 April 2018 Update and then click Save to download the file. After the file has been downloaded, change the User agent string in Edge from Apple Safari (iPad) back to Microsoft Edge (Default). Close the right pane by clicking the X.

Create the USB Drive

Now, let’s move over to WinToUSB to create the USB drive. Download and install the WinToUSB software from its dedicated website. You can start with the free version and then decide if you want to upgrade to the $29.95 Professional version to gain more features or use the software with the Windows 10 October 2018 Update.

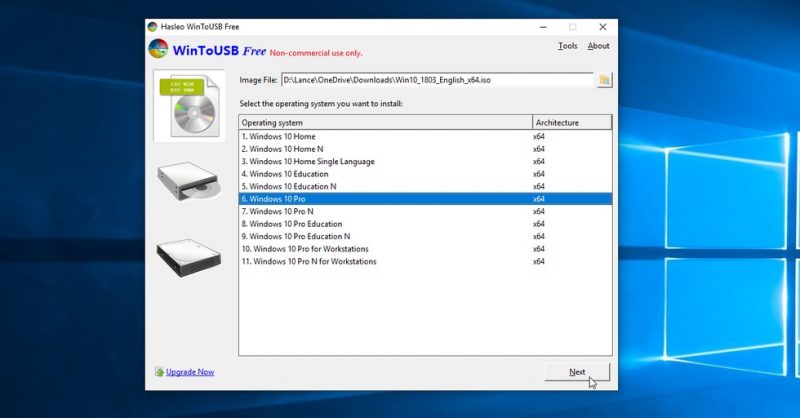

Next, connect a blank USB flash drive or stick to your computer. Launch WinToUSB from its Start menu shortcut. At the introductory screen, click the button to the right of the Image File field and choose your ISO file for the Windows 10 April 2018 Update. Then select the version of Windows 10 you wish to clone onto the USB stick. Click Next.

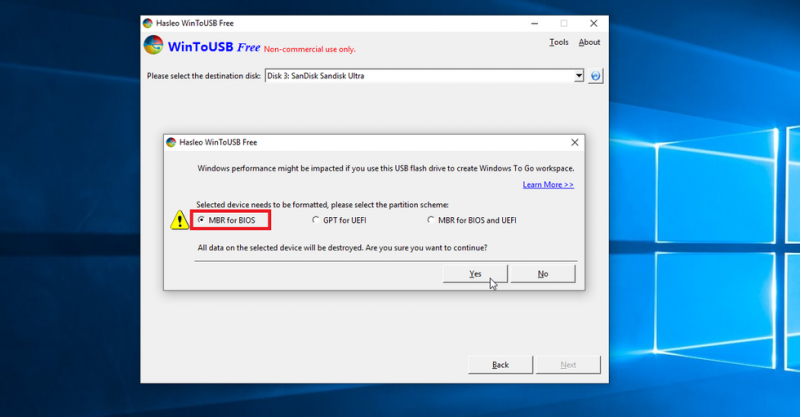

At the next screen, you will need to determine your destination disk. Open the drop-down menu and choose your USB drive. A message pops up asking you to select a partition scheme. Click the option for “MBR for BIOS” and then click Yes.

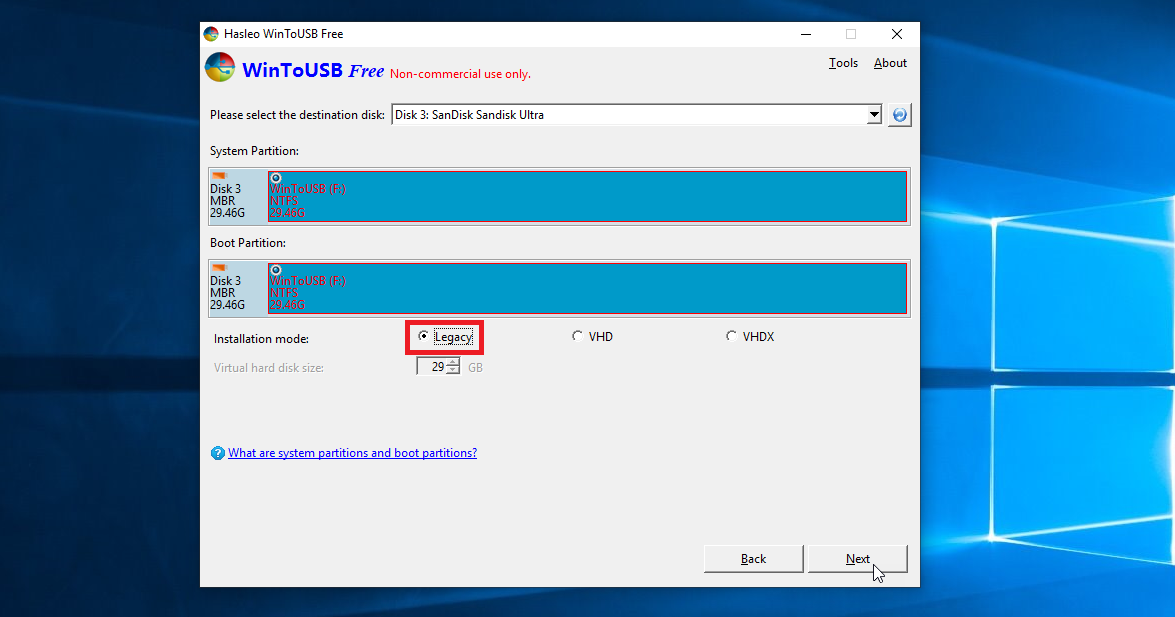

At the next screen, click the option for Legacy to choose the Installation mode. Click Next. Your Windows 10 USB stick will now be created.

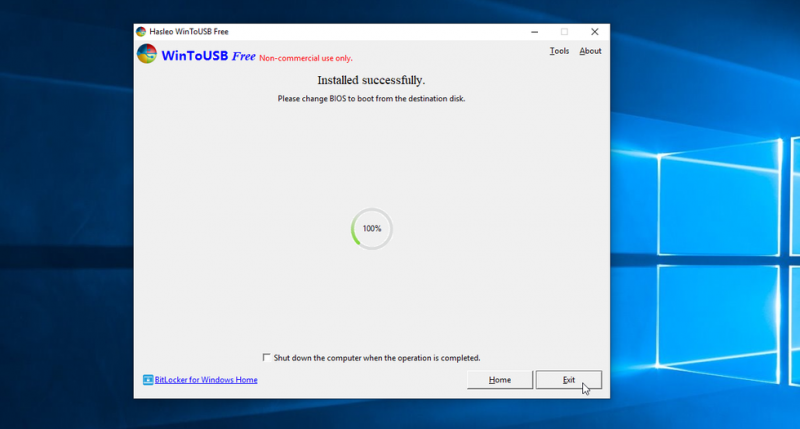

When the installation process reaches 100 percent, indicating that it’s finished, close the WinToUSB program and remove the USB drive.

Launch Windows 10 on a Different Computer

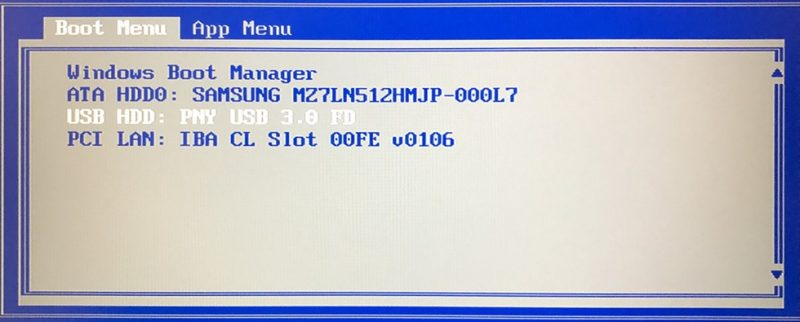

When you want to launch Windows 10 on a different computer, insert your USB drive into that PC and choose the option to boot up off the USB drive.

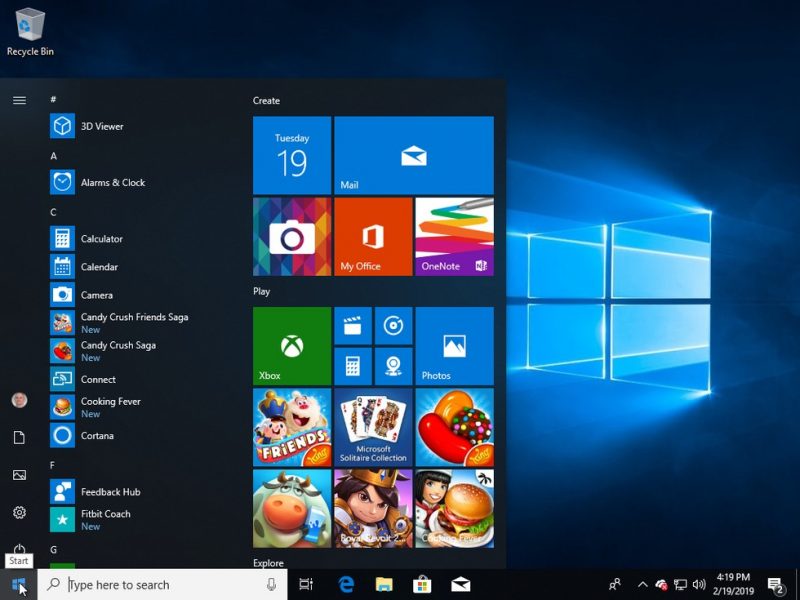

The first time you run Windows 10 off the USB drive, you’ll need to go through the familiar Windows setup process. You’ll also need to activate Windows 10. You can then install apps onto the USB drive and access any files or documents stored online, so the experience comes close to working on one of your own Windows 10 PCs.

Conclusion:

You run home windows 10 in your very own pc, But now you are the use of every other tool outfitted with an older running gadget. In case you prefer to use the newer version, though, you may create and use a USB force that runs home Windows 10 without delay.Yes, you can load and run Windows 10 from a USB drive, a handy option when you’re using a computer saddled with an older version of Windows.
